30W-310W Shingled Solar Modules30W-310W Shingled Solar Modules30W-310W Shingled Solar Modules30W-310W Shingled Solar Modules

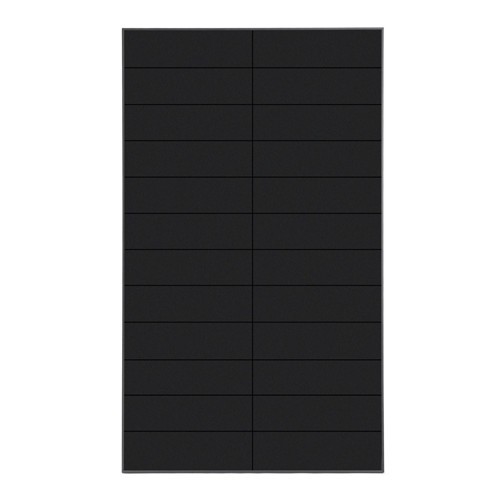

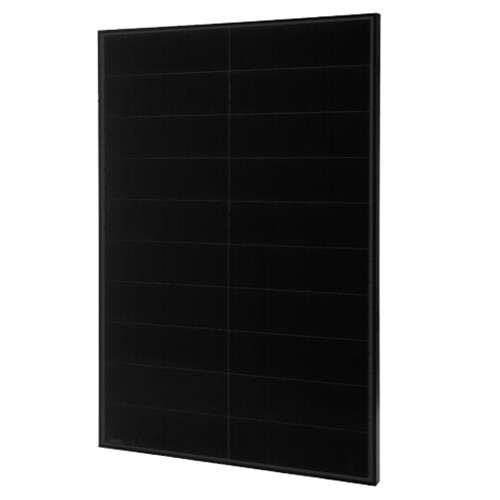

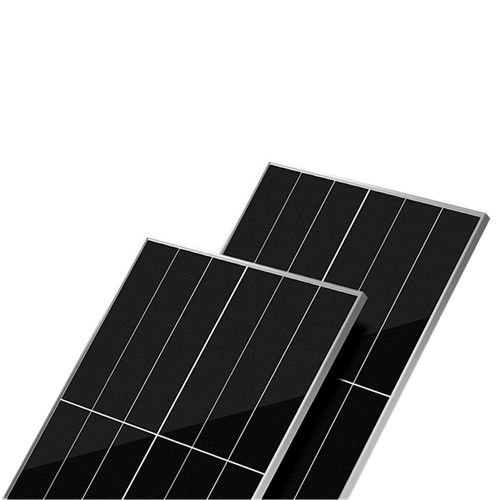

30W-310W Shingled Solar Modules

  • Power: 30W-310W
  • Output: MC4 or Customized
  • Cell: Monocrystaline Shingled Cell
  • Customized: Acceptable
  • Price: to be negotiated
  • Shingled Solar Modules , Shingled Solar Panels , Shingled Technology , Shingled Cell
    Inquiry Send Email

    Description

    Shingled module technology is a kind of high-efficiency technology, which is different from traditional module assembly and effectively improves module conversion efficiency. With this technology can increase the effective power generation area and make full use of module area; under the same area, more than 10% cells can be placed than conventional module assembly.

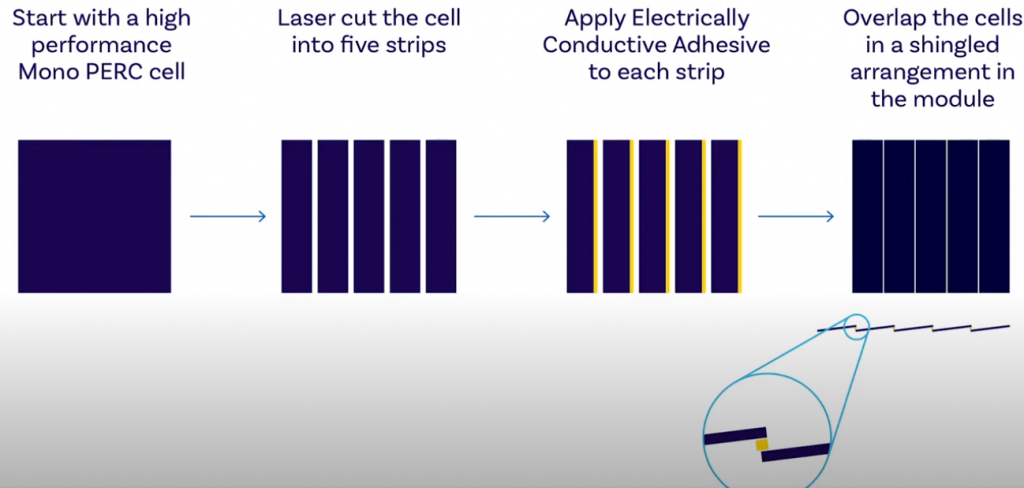

    showing how is mono shingled solar cells made?

    Shingled modules use Electrically Conductive Adhesive instead of solder ribbon to electrically connect the cells. This reduces stress on the cells during manufacturing. As panels get hot in the day and cold at night, traditional solder ribbon expands and contracts but the silicon cells don’t causing more stress.

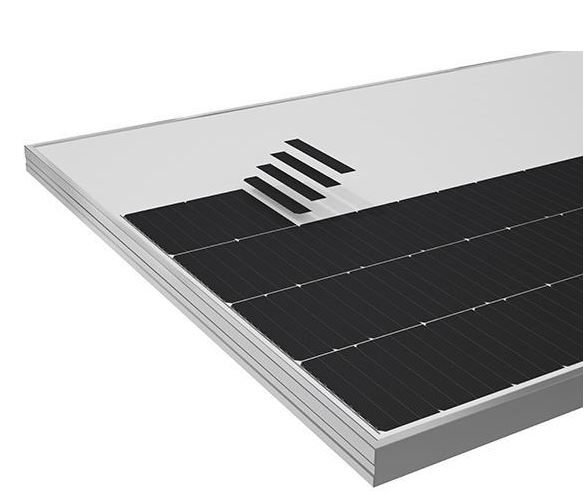

    showing how is mono half-cell shingled solar modules made?

    Shingled technology optimizes module structure, greatly reduces the internal loss of modules and increases the output power. It ensures the minimum power loss during module assembly process, effectively reduces the influence of reverse current and the hot spot effect, and has good reliability. The panel offers excellent power output throughout the complete sun spectrum. The panel is resistant to salt mist, ammonia, and blowing sand and therefore suitable for seaside, farm, or desert areas.

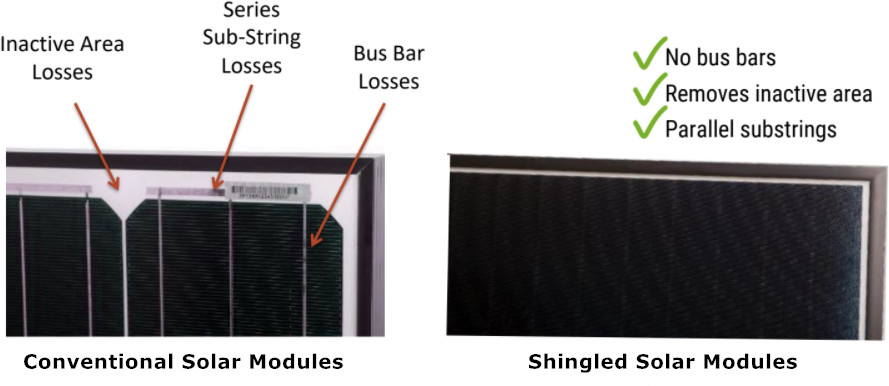

    compare conventional and shignled solar modules to show unnecessary losses at inactive area, series sub-string and bus bar


    Parameter of Shingled Solar Modules

    Max.

    Power

    Cell

    Type

    Operating

    Current

    (A)

    Operating

    Voltage

    (V)

    Open-

    Circuit

    Voltage

    (V)

    Short-

    Circuit

    Current

    (A)

    Dimension

    (mm)

    Weight

    (KG)

    Cable

    Connector

    Operating

    Temp.

    (℃)

    30W

    Mono-

    crystalline

    1.7

    17.6

    20.8

    2.21

    540*350*30

    2.2

    700mm/

    1.5mm²

    MC4/

    MC4

    Compatible

    -40℃

    ~

    +80℃

    40W

    1.79

    22.4

    26.8

    2.28

    640*350*30

    3.1

    50W

    2.93

    17.05

    20.15

    3.44

    800*350*30

    5.12

    60W

    2.66

    22.55

    26.65

    3.17

    1050*350*30

    5.42

    80W

    3.73

    21.45

    25.35

    4.22

    1200*350*30

    5.0

    100W

    4.33

    23.1

    27.3

    4.84

    1080*510*30

    6.3

    120W

    5.59

    21.45

    25.35

    6.1

    1200*510*30

    7.1

    140W

    7.27

    19.25

    22.25

    7.78

    1230*670*30

    8.1

    160W

    7.27

    22

    26.4

    7.78

    1230*670*30

    9.0

    190W

    9.60

    19.8

    23.4

    10.09

    1650*580*35

    11.83

    310W

    9.06

    34.1

    40.3

    9.61

    1650*992*30

    *Note: Lynsa Solar 2021 catalogue is also available to download here.


    Customization

    Customization is always available, we have one professional R&D team for new products and customized requirement from our customers, for the size of modules, color of alluminium frame, backsheet, it is available to choose all black module, or black frame but white backsheet, or white frame with white backsheet, it depends on your requirement, we can do what you need.

    Lynsa solar is capable to do customized shingled solar modules for you

    Application

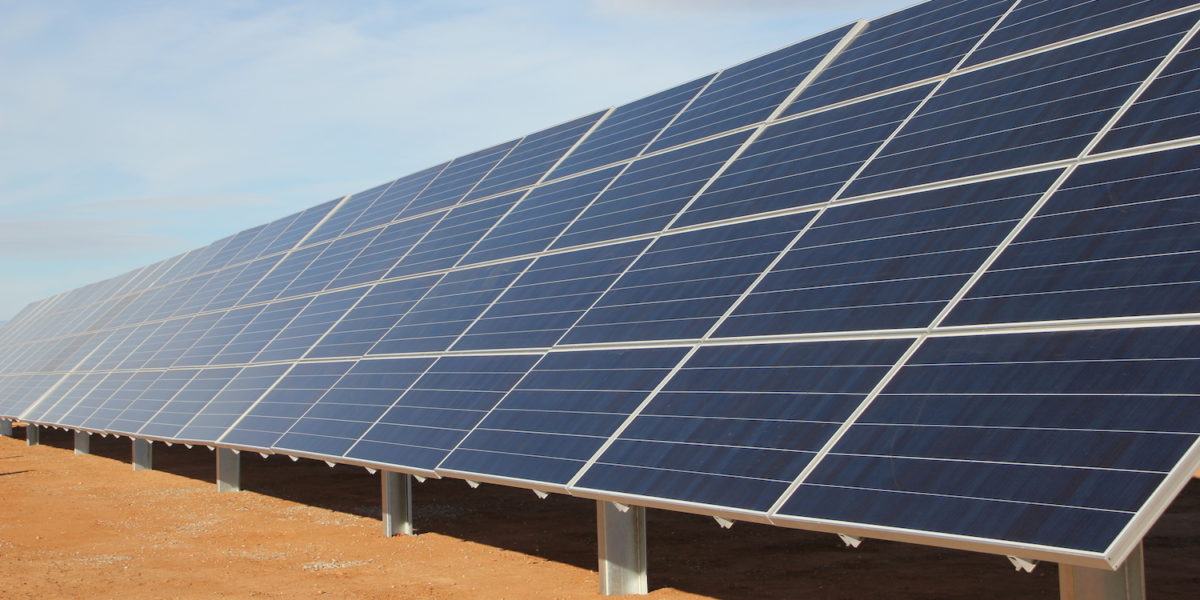

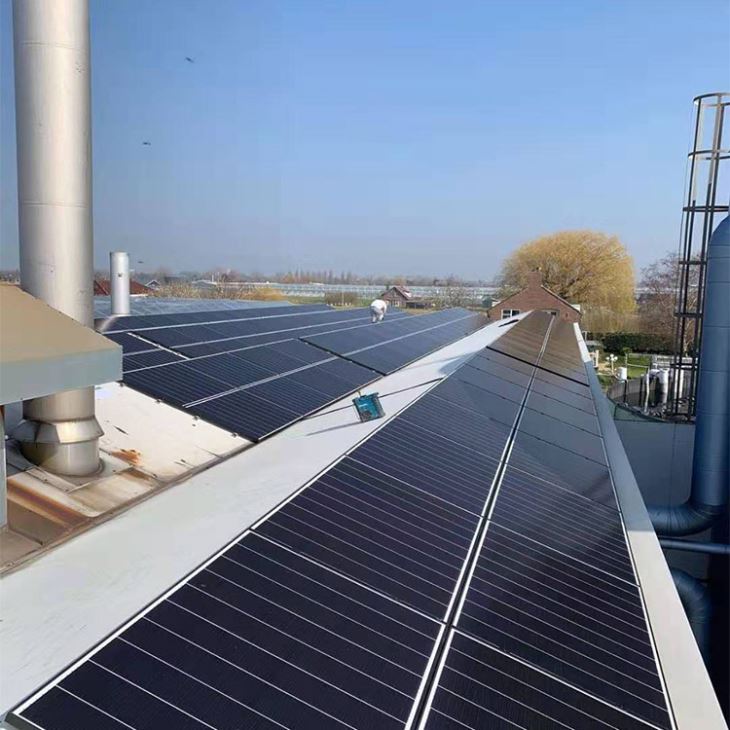

    Suitable for solar plant, rooftop system, home solar system and BIPV etc..

    Suitable for solar plant, rooftop system, home solar system and BIPV etc..Suitable for solar plant, rooftop system, home solar system and BIPV etc..


    *Brought to you by Xiamen Lynsa Intelligent Technology Co., Ltd.
